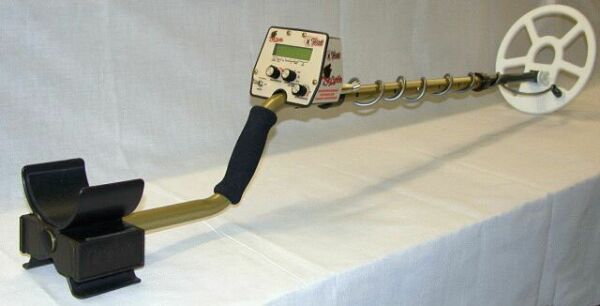

Tesoro DeLeon Metal Detector
List Price $599.00 Our Price $509.15
Free Shipping
Qty: Price: $509.15


View Shopping Cart | Empty Shopping Cart


Introducing the Tesoro
DeLeón Metal Detector!

Cortés Circuitry….
Silver Sabre Simplicity

LCD Display with Five Segment Bar
Graph, Target ID Number and Coin Depth
Indication

. The DeLeón is a Target Identification Detector or T.I.D. The DeLeón is designed as an easy to use, turn-on-and-go detector. The faceplate has only four controls: Sensitivity, Discriminate, Threshold and a Mode Switch. It uses the same circuitry as the Cortés, so you can expect the same depth and sensitivity from the DeLeón that the Cortés is well known for.

The DeLeón's display screen is one character high by eight characters wide. It is larger and easier to read than the Cortés display but does not carry as much information. Starting from left to right on the faceplate, you will see that the DeLeón has a Coin Depth reading, a five segment bar graph and a two-digit Target ID Number. The bar graph shows several categories for ID purposes, but we recommend that it be used with the ID Number for the most accurate information.

DeLeón Specifications

Operating Frequency   10 kHz
Searchcoil Type   Concentric
Searchcoil Size   9 x 8
Cable Length   Approx. 3’
Audio Frequency All Metal VCO   Approx. 350 to 950 Hz
Audio Output   2¼" speaker and headphone jack
Headphone Compatibility   ¼” stereo plug
Weight (may vary slightly)   2.98 lbs
Battery Requirement   Eight AA (alkaline)
Battery Life (typical)   10 to 20 hours
Optimum Temperature Range   30° to 100° F
Optimum Humidity   0 to 75% R.H.
Operating Modes   No Motion All Metal
    Silent Search Discriminate
